Suitable for treatment of dust rich gas because of high efficiency for dust collecting.

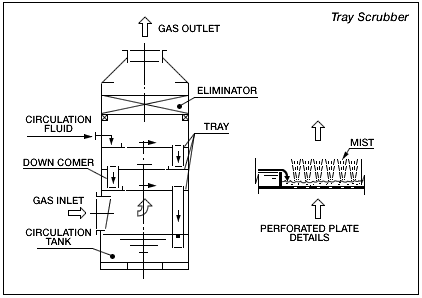

"Perforated plates" are attached horizontally. "Down comers"are attached on each plate vertically. Fluid is supplied from the top stage. Gas comes from the bottom stage.
Gas collides with fluid on each tray, then gas is absorbed effectively. Fluid absorbed gas is circulated again.
This scrubber usually has 3 stages. With gas conditions, we are increase or decrease the number of the tray.

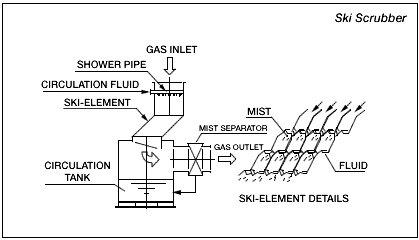

Original wavy elements , which have many ditches, are attached with parallel. Gas is absorbed effectively with its "'Venturi effect".

This scrubber has high quality for dust collecting. Therefore it is commonly used for gas which has much dust.

In various gas conditions, this scrubber has high quality for gas absorption, and it is flexible for transition of gas load.

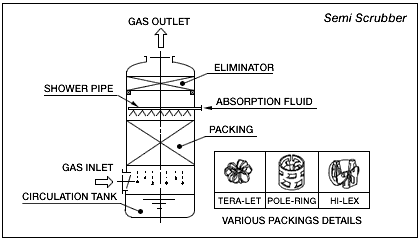

It is possible to choose various packing for this scrubber. Gas collides with fluid , then gas is absorbed effectively.
Fluid absorbed gas is circulated continuously.

This scrubber is used for gas which has a little dust.

This is mainly used for cooling down of gas, gas pre-absorption, and dust pre-collecting.
In order to adjust your installation conditions, we are able to propose either horizontal or vertical type.

Since more than 25 years ago, we have installed a lot of plants and acquired high satisfaction from clients.

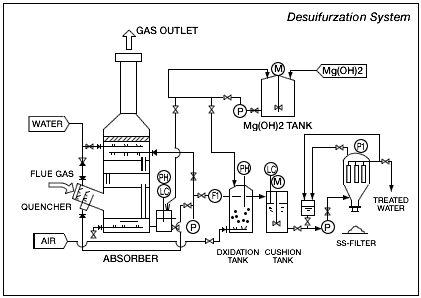

This system absorbs SOx of discharged gas from: boilers, diesel engines, cupolas, and kilns and so on.
Its wastewater is oxidized to harmless MgSO4. The wastewater is discharged, after solid content is removed.
In the past, NaOH was usually used for absorption. But at present, Mg(OH)2, which is more economical, is commonly used.

(Process)
High temperature gas is cooled down at quencher. Gas collides with fluid on each perforated plate. After harmful gas is absorbed, gas will be discharged. Absorbing fluid is discharged from scrubber consecutively. After its COD content is decreased at oxidation tank and SS content is removed at SS-filter, cleaned water will be discharged.

(Type)
Spray tower / Tray scrubber

(Efficiency)
De-SOx efficiency : 95-99%
Dust removal efficiency : more than 90%
Discharged fluid's COD content : less than 20mg/l

We can offer the most economical and efficient plant based on our enough experience and high quality of engineering capability.

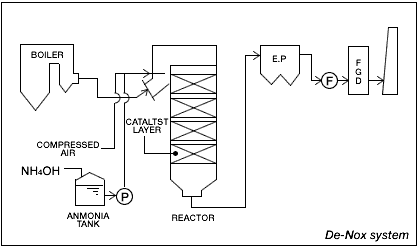

NOx gas is decomposed into Nitrogen and water by NH3 and catalyst. The process is well known as SCR. (Selective Catalytic Reduction with Ammonia)

(Process)
This system consists of De-NOx tower, which attaches honeycomb type catalysts, NH3 injection pump and mixing chamber.
After injecting NH3 into the gas which includes NOx and is high degree of 200-400℃, gas goes through catalysts layer and NOx is decomposed into Nitrogen and water.
We use either NH3 gas, liquid NH3, Ammonia aqueous or urea for injection and adopt pumps which are suitable for injection.

(Efficiency)
De-NOx efficiency : -90%
Acceptable gas temperature : 240-400℃
Outlet NH3 conten t : less than 5ppm SO2 oxidation rate : less than 0.5%

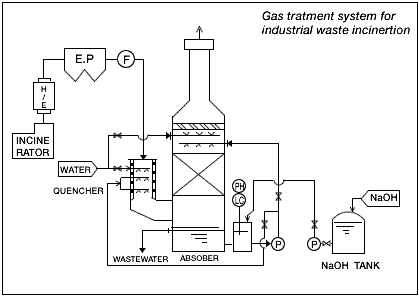

This system, which uses alkaline fluid, absorbs SO2 and HCl gas discharged from industrial waste incinerators.
NaOH and Mg(OH)2 are frequently used for this system.
Not only industrial waste incineration gas, but also various kinds of harmful gas, this system is adopted.

(Process)
This system consists of quencher and absorber. After removing dust, flue gas comes to quencher. In the quencher, flue gas is cooled down to its saturation. In the absorption, gas collides with fluid and harmful gas is absorbed efficiently. In case gas-load changes irregularly, this system is able to keep its high efficiency.

(Type)
Spray tower + Semi scrubber

(Efficiency)
HCl removal rate : 90%-95%
SO2 removal rate : 95%-99%

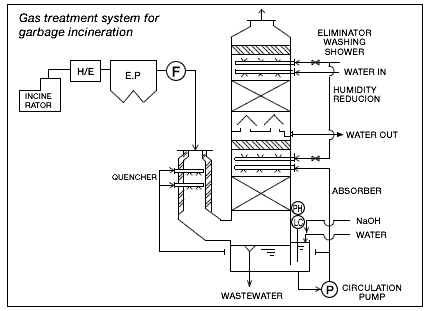

HCl, SOx, and so on, which are included in the gas from garbage incinerators, are efficiently absorbed with alkaline fluid.
In order to eliminate white smog, there is function for humidity reduction with cooling water. Not only for garbage incineration but also for various kinds of gas treatment, this system has been adopted and acquired clients' satisfaction.

(Process)
This system consists of quencher, absorber and humidity reduction room. Gas, from incinerator, is cooled down and pre-absorbed in quencher. Then, in absorber, gas is almost fully absorbed. Gas is discharged, after reducing its humidity and temperature in the upper part of tower. Absorption and humidity reduction are done in the same tower, therefore you can save your place to install.

(Type)
Spray tower / Semi scrubber

(Efficiency)
HCl removal rate : more than 98%
SO2 removal rate : more than 98%

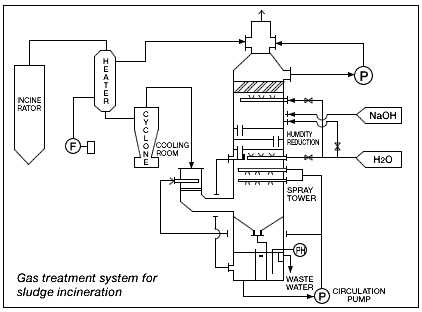

Dust, HCl, SO2 and so on, which are included in the gas from sewage sludge incinerators, are efficiently absorbed with alkaline fluid.

(Process)
This system consists of cooling room, spray tower, tray scrubber and humidity reduction room. Sludge incineration gas is collected its heat and it comes to cyclone to remove coarse-grained particles.
In the cooling room, gas is cooled down and removed its dust.
In the spray tower and tray scrubber, remaining dust and harmful gas is removed. Cooling water, which is supplied on the perforated plate, reduces gas humidity and also used for spray tower water. NaOH is mainly used for absorption.

(Type)
Venturi scrubber / Spray tower / Tray scrubber

(Efficiency)
HCl removal rate : 93%-95%
SO2 removal rate : more than 98%

HCl, SOx, and so on, which are included in the gas from garbage incinerators, are efficiently absorbed with alkaline fluid.
In order to eliminate white smog, there is function for humidity reduction with cooling water. Not only for garbage incineration but also for various kinds of gas treatment, this system has been adopted and acquired clients' satisfaction.

(Process)
This system consists of quencher, absorber and humidity reduction room. Gas, from incinerator, is cooled down and pre-absorbed in quencher. Then, in absorber, gas is almost fully absorbed. Gas is discharged, after reducing its humidity and temperature in the upper part of tower. Absorption and humidity reduction are done in the same tower, therefore you can save your place to install.

(Type)
Spray tower / Semi scrubber

(Efficiency)
HCl removal rate : more than 98%
SO2 removal rate : more than 98%

We have installed this system a lot, and with its reliability, we have acquired high satisfaction from clients.

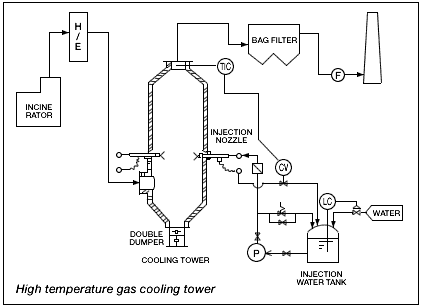

High temperature gas, from garbage incinerators and so on, is sprayed with water and cooled down. This cooling tower is fully evaporated system. If you adopt a system in which gas is reacted with calcium hydroxide in bag filter, before gas comes to the bag filter, gas must be cooled down by its temperature capacity.
This system controls gas temperature with minimum water and is able to evaporate perfectly.

(Process)
Discharged gas comes from the bottom of the cooling tower.
With spray nozzles attached in the middle, gas is cooled down by 200℃.
The amount of water is automatically controlled by the TIC attached at the top. Water is fully evaporated and discharged with fixed temperature.
The dust accumulated at the bottom is automatically discharged from double-dumper while this system is operating.

(Type)
MCT cooling tower (fully evaporated system)

(Efficiency)
Inlet temperature : 500～800℃ Outlet temperature : 200±10℃
